![3" Halogen/CMH Adjustable Downlight](/Content/Images/Products/element_3.png)
3" HALOGEN/CMH ADJUSTABLE DOWNLIGHT
product informationproduct features
trims
wood ceiling option
housings
full ordering grid
installation
applications gallery
how to buy
![](/i//ELEMENT/products/large/3_hal_cmh_adj_down.jpg)
3" Halogen/CMH Adjustable Downlight
downloads
spec sheet
instruction sheets
IES file
REVIT file
"Why ELEMENT" Downlight Brochure
spec sheet
instruction sheets
Instruction Sheets
- Type IC Adjustable Housing with Halogen Lamp
- Type Non-IC and Chicago Plenum Adjustable with Halogen Lamp
- Type IC Adjustable with Remote Transformers
- Type Non-IC and Chicago Plenum Adjustable with Remote Transformer
- E3 Flanged Trims
- E3 Flangeless Trims
- Wood Ceiling Option Flangeless Trim
- Replacing Electronic Transformers
- Replacing Magnetic Transformers
REVIT file
"Why ELEMENT" Downlight Brochure
Product Information
3" HALOGEN/CMH ADJUSTABLE DOWNLIGHT
Small aperture recessed downlight fully adjustable with ELEMENT’s unique patented high-low lamp positioning. The innovative design allows the lamp to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Additional adjustability allows for hot aiming including 0°- 40° tilt and 361° rotation to eliminate dead spots. All aiming functions are lockable.
![Product Features](/Content/Images/Products/product_features.png?r=69780408)
![](/i//ELEMENT/products/features/3_hal_cmh_adj_down.jpg)
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=69780408)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=69780408)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=69780408)
![White White](/Content/Images/Products/Finishes/white.jpg?r=69780408)
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

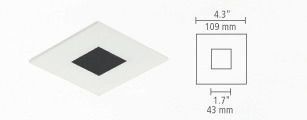

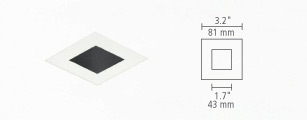

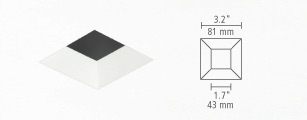

SQUARE TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |

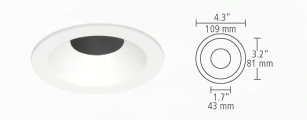

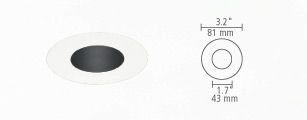

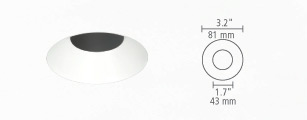

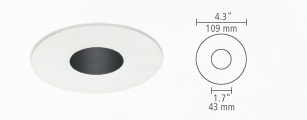

ROUND TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |
AVAILABLE FINISHES
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=69780408)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=69780408)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=69780408)
![White White](/Content/Images/Products/Finishes/white.jpg?r=69780408)
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
![](/Content/Images/Products/wood_ceiling_option.png)
![Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction. Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.](/i//ELEMENT/products/trims/3_wood_trim.jpg)
Housings
![]() CHICAGO PLENUM
|
![]() IC AIRTIGHT
|
![]() NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.![](/i/ELEMENT/web/Installation_Guides/3_step1.jpg)
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
![](/i/ELEMENT/web/Installation_Guides/3_step2.jpg)
Mount wall board to ceiling and walls.
![](/i/ELEMENT/web/Installation_Guides/3_step3.jpg)
Attach plaster plate to the aperture using supplied hardware.
![](/i/ELEMENT/web/Installation_Guides/3_step4.jpg)
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
