3" LED FIXED DOWNLIGHT

The ELEMENT 3” Next Generation fixed recessed downlight features a patented high/low lamp positioning which allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Options include premium warm dimming options, Xicato and Xicato Artist Series LED options, flanged or flangeless trim options including a flangeless wood ceiling option.

  • Housing size reduced 60%
  • Patented High/Low Lamp Positioning
  • 2-step Standard
  • Standard Triac/ELV dimming to less than 1%
  • Trim Reflector Options
  • Solite™ Soft Focus Lens Option

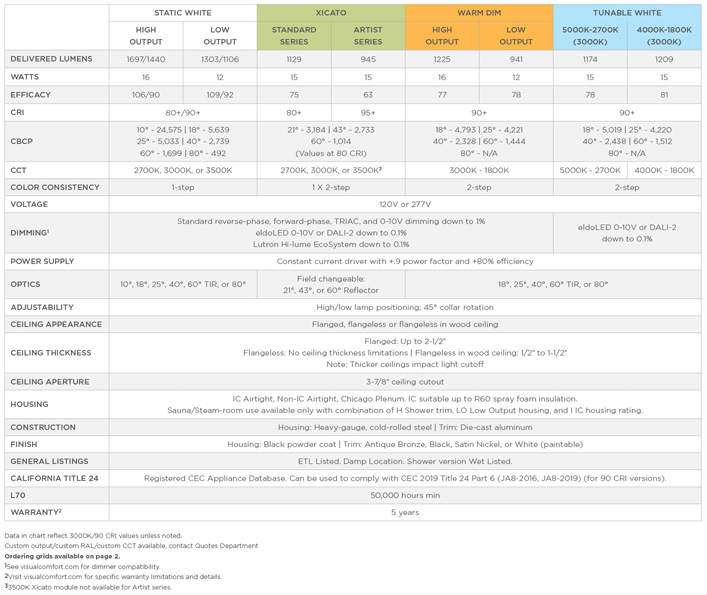

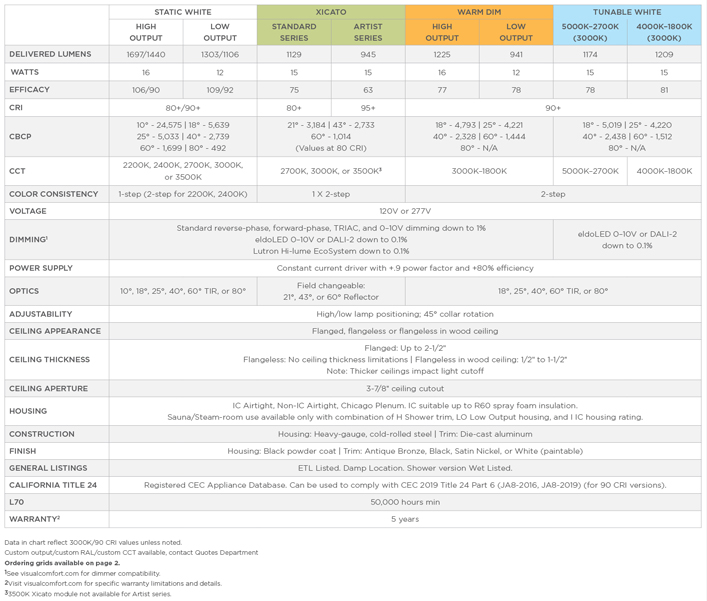

    • Specification Chart



    Product Features

    View Next Generation Product Feature Video.

    Some functionality may not be applicable to the 3" LED Fixed Downlight. Visit 3" LED Adjustable Downlight for more options.

    Trims

    Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

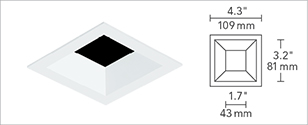

    SQUARE TRIMS

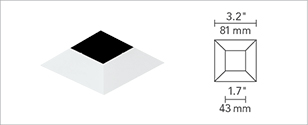

    FLANGELESS BEVEL

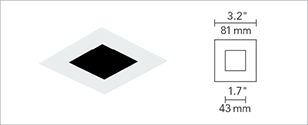

    FLANGELESS FLAT


    FLANGED BEVEL

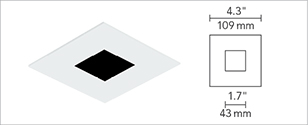

    FLANGED FLAT

    ROUND TRIMS

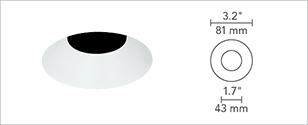

    FLANGELESS BEVEL

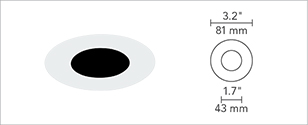

    FLANGELESS FLAT

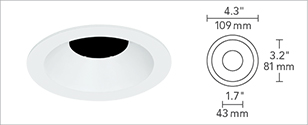

    FLANGED BEVEL


    FLANGED FLAT

    AVAILABLE FINISHES

    Antique Bronze
    Black
    Satin Nickel
    White
    Finishes available in antique bronze, black, satin nickel, white (paintable).

    Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

    Trim-Mounted Reflectors

    ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
    • - Can be easily installed or removed
    • - Mounts to existing trim
    • - Compatible with Fixed and Adjustable Housings
    • - Finish Options: Anodized Gold (G) or Anodized Black (B)




    shown in gold
    (below ceiling view)

    shown in gold
    (below ceiling view)

    black reflector insert

    shown in gold
    (trim mounted)



    Click here to download the Reflectors specification sheet.
    Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

    Housings


    CHICAGO PLENUM
    IC AIRTIGHT

    NON-IC AIRTIGHT

    Installation

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.

    Awards

    Lightfair International: Best In Category

    Applications

    International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
