Product Information

3" LED REMODEL DOWNLIGHT NON-IC ADJUSTABLE

The ELEMENT 3" LED Flanged or Flangeless Adjustable Remodel is suited for below the ceiling installation where a seamless, mudded-in look is desired. Featuring a precision aiming mechanism with 0-40º tilt and 361º rotation, and ELEMENT's patented High-Low lamp positioning in a 5.75" deep housing mechanism. The mud plate is designed integral to the housing while still allowing below the ceiling servicing and installation. Trims are offered in die-cast square or round, beveled or flat, flanged or flangeless, in 4 finishes all matching ELEMENT new construction trims.

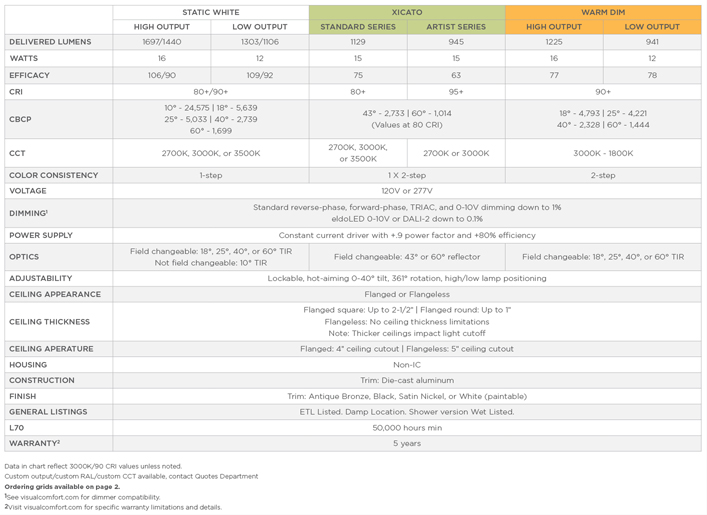

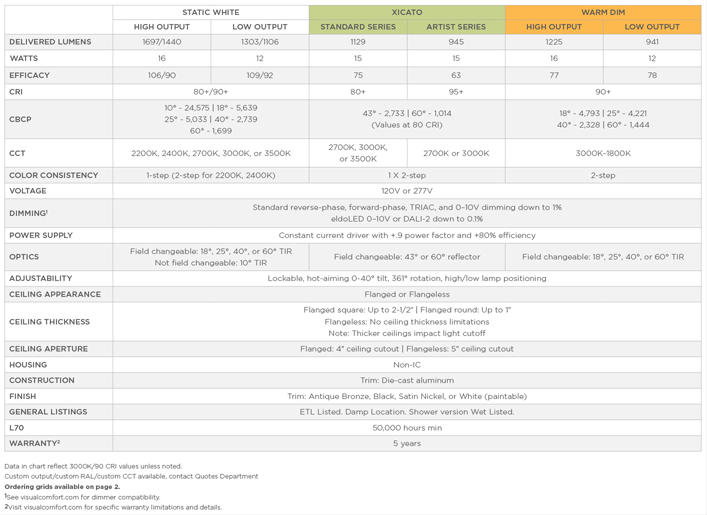

Specification Chart



Trims

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

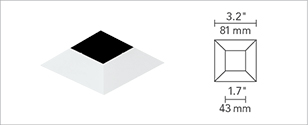

FLANGELESS BEVEL

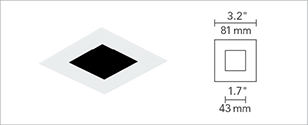

FLANGELESS FLAT

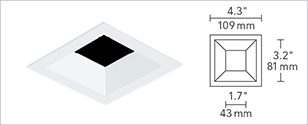

FLANGED BEVEL


FLANGED FLAT

ROUND TRIMS

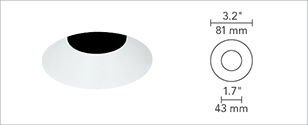

FLANGELESS BEVEL

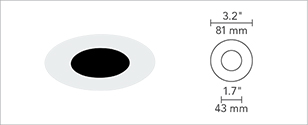

FLANGELESS FLAT

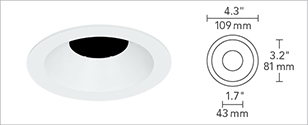

FLANGED BEVEL

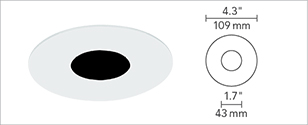

FLANGED FLAT


Trim-Mounted Reflectors

ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
  • Can be easily installed or removed
  • Mounts to existing trim
  • Compatible with Fixed and Adjustable Housings
  • Finish Options: Anodized Gold (G) or Anodized Black (B)




shown in Black
(below ceiling view)

shown in Black
(below ceiling view)

black reflector insert

shown in Black
(trim mounted)



Click here to download the Reflectors specification sheet.

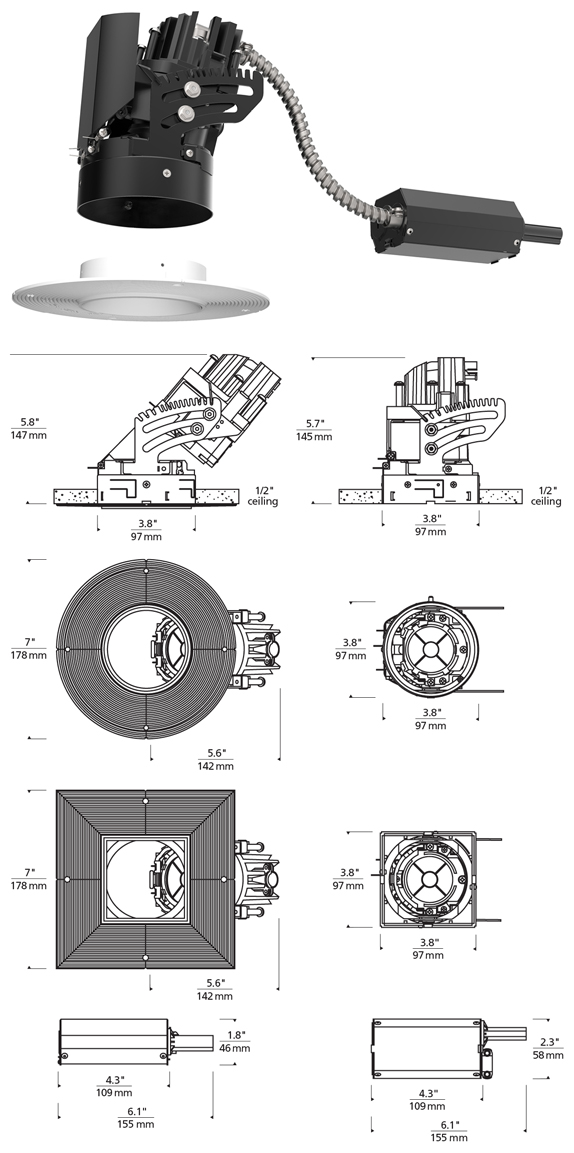

Housings


NON-IC

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
