3" LED REMODEL DOWNLIGHT NON-IC FIXED
product informationtrims
housings
full ordering grid
applications gallery
how to buy

3" LED Remodel Downlight Non-IC Fixed
downloads
spec sheet
instruction sheets
IES files
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure
Building Awareness & Education
3" Mud/Plaster plate LED/Halogen options
spec sheet
instruction sheets
IES Files
- 3" Square LED 12 Watt, 15° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 15° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 25° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 25° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 2700K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 2700K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 3500K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 12 Watt, 40° Beam, 3500K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 10° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 15° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 15° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 25° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 25° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 2700K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 2700K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 3000K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 3500K, 80 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, 3500K, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 40° Beam, Warm Dim, 90 CRI, 0° Tilt, Low Position
- 3" Square LED 18 Watt, 60° Beam, 3000K, 80 CRI, 0° Tilt, Low Position
"Why ELEMENT" Downlight Brochure
Building Awareness & Education
3" Mud/Plaster plate LED/Halogen options
Product Information
3" LED REMODEL DOWNLIGHT NON-IC FIXED
The ELEMENT 3" LED Remodel is well suited for any remodel application. The flanged trim installation method accommodates any ceiling thickness. At a 5" depth from the bottom of the ceiling, it provides the perfect solution

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.




Finishes available in antique bronze, black, satin nickel, white (paintable).
Due to the brittle nature of drywall, extra care and consideration must be taken when determining whether to install the flangless remodel trims in drywall applications to avoid chipping. If this is not feasable, we recommend using the flanged trims.

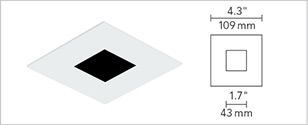

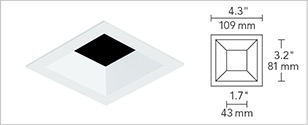

SQUARE TRIMS![]() FLANGED BEVEL ![]() FLANGED FLAT |

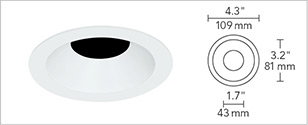

ROUND TRIMS![]() FLANGED BEVEL ![]() FLANGED FLAT |
AVAILABLE FINISHES




Due to the brittle nature of drywall, extra care and consideration must be taken when determining whether to install the flangless remodel trims in drywall applications to avoid chipping. If this is not feasable, we recommend using the flanged trims.

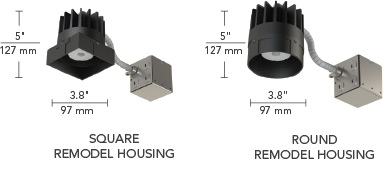

Housings
![]() NON-IC AIRTIGHT
|
Applications
