3" LED Wall Wash
Product Information
3" LED WALL WASH
The ELEMENT 3” Next Generation Wall Wash solution sets a new best-in-class performance benchmark for recessed downlights. These ELEMENT Wall Wash solutions create a beautifully uniform high output flood of LED light without scalloping or hot spots, eliminating shadows and emphasizing the smoothness of a wall from top to bottom.
Luminit turning film, two directions
Even vertical and horizontal illumination of walls
High Efficacy: 79 lumens/watt
21 foot candles max ratio
Wall Height: 5 foot candles within 4 inches of ceiling
Standard Triac/ELV dimming to less than 1%
![LED / 5-Year Warranty](/Content/Images/Products/led-5-year.png)
![Product Features](/Content/Images/Products/product_features.png?r=252815174)
View Next Generation Product Feature Video.
Some functionality may not be applicable to the 3" LED Wall Wash. Visit 3" LED Adjustable Downlight for more options.
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=252815174)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=252815174)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=252815174)
![White White](/Content/Images/Products/Finishes/white.jpg?r=252815174)
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

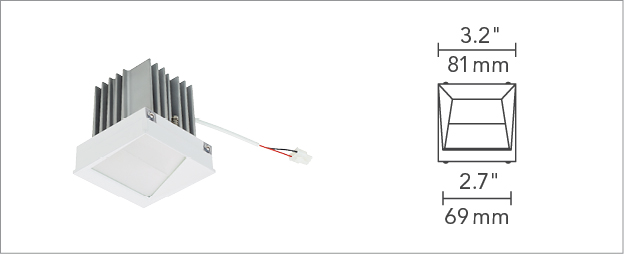

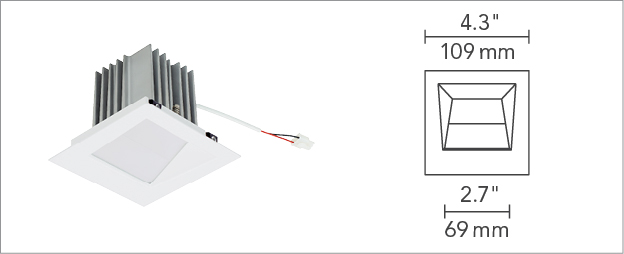

SQUARE TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |

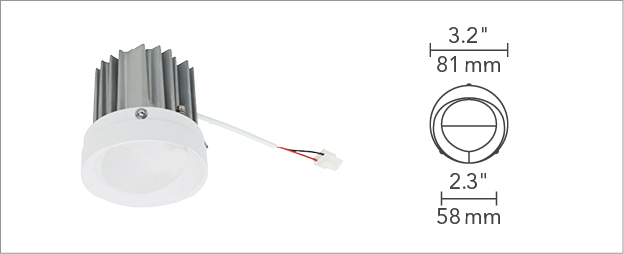

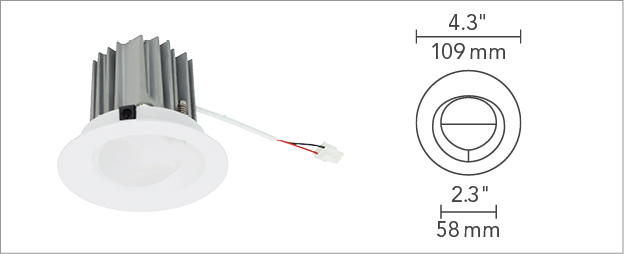

ROUND TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |
AVAILABLE FINISHES
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=252815174)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=252815174)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=252815174)
![White White](/Content/Images/Products/Finishes/white.jpg?r=252815174)
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
![](/Content/Images/Products/wood_ceiling_option.png)
![Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction. Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.](/i//ELEMENT/products/trims/3_wall_wash_wood_trim.jpg)
Housings
![]() CHICAGO PLENUM
|
![]() IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.![](/i/ELEMENT/web/Installation_Guides/3_step1.jpg)
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
![](/i/ELEMENT/web/Installation_Guides/3_step2.jpg)
Mount wall board to ceiling and walls.
![](/i/ELEMENT/web/Installation_Guides/3_step3.jpg)
Attach plaster plate to the aperture using supplied hardware.
![](/i/ELEMENT/web/Installation_Guides/3_step4.jpg)
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
