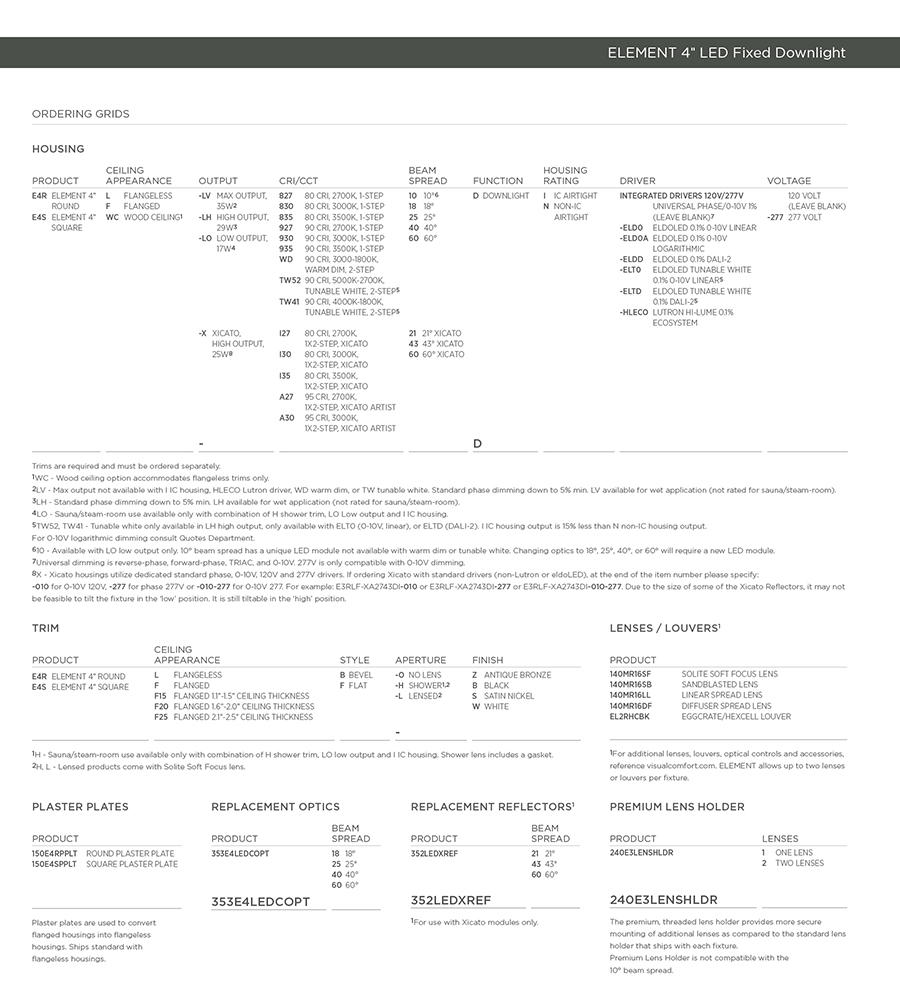

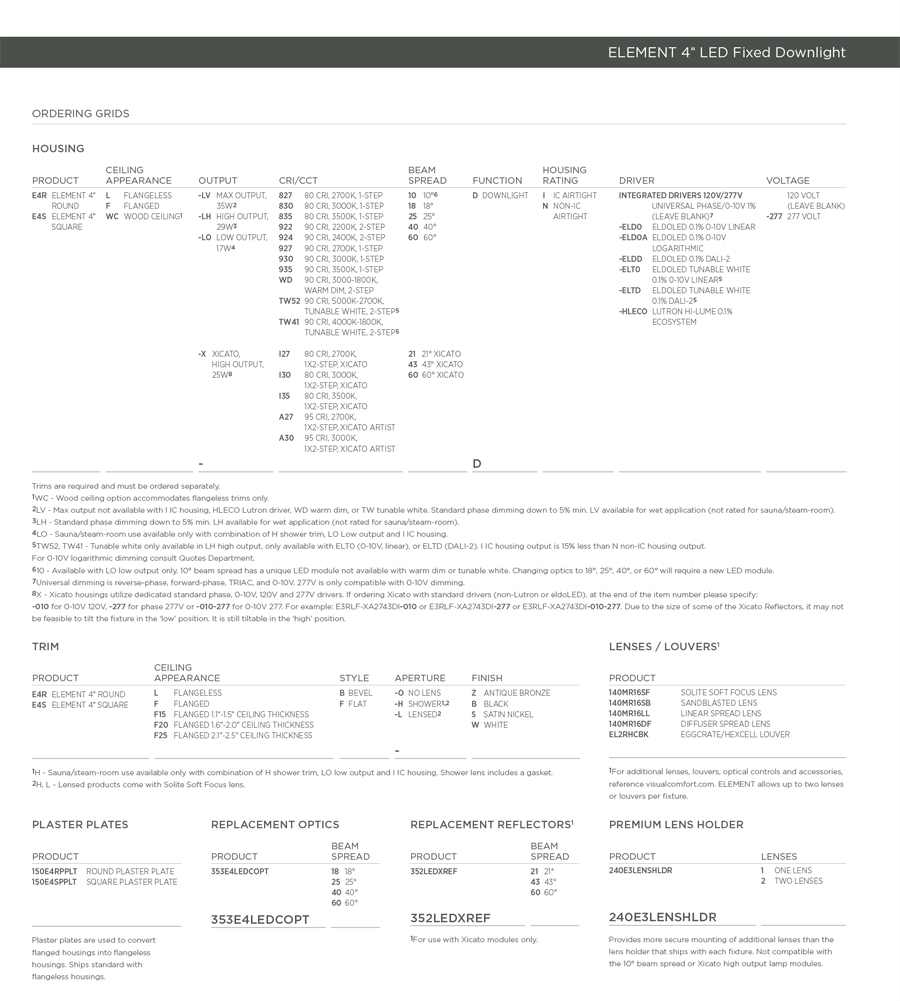

full ordering grid
installation
awards
applications gallery
how to buy
![](/i//ELEMENT/products/large/4_led_fixed_down.jpg)

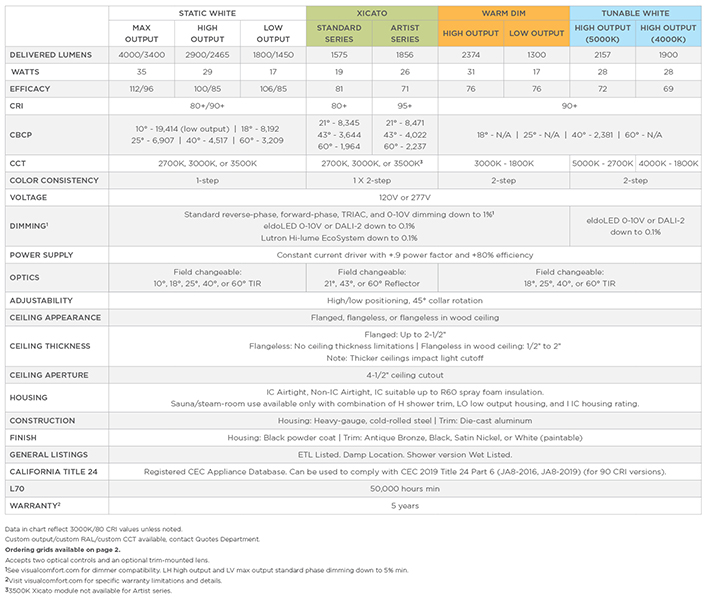

4" LED Fixed Downlight
downloads

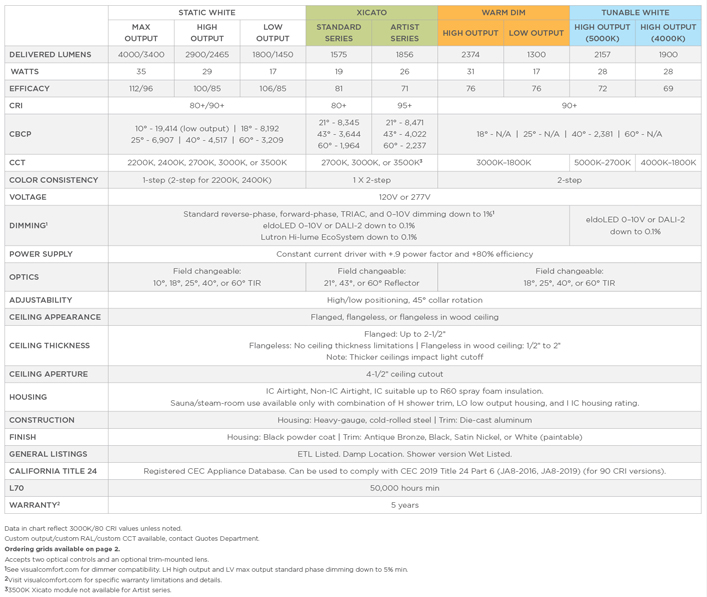

spec sheet
reflectors spec sheet
instruction sheets
IES files
REVIT file
Dimmer Compatibility
lumenetix commissioning tool
"Why ELEMENT" Downlight Brochure
Building Awareness & Education
spec sheet
reflectors spec sheet
instruction sheets
IES Files
- 4" Citizen Hi-Output Adjustable 18°, 3000K, 90 CRI
- 4" Citizen Hi-Output Adjustable 25°, 3000K, 90 CRI
- 4" Citizen Hi-Output Adjustable 40°, 2700K, 90 CRI
- 4" Citizen Hi-Output Adjustable 40°, 3000K, 80 CRI
- 4" Citizen Hi-Output Adjustable 40°, 3000K, 90 CRI
- 4" Citizen Hi-Output Adjustable 40°, 3500K, 90 CRI
- 4" Citizen hi-Output adjustable 40°, warm dim, 90 CRI
- 4" Citizen Low-Output Adjustable 10°, 3000K, 90 CRI
- 4" Citizen Max-Output Adjustable 40°, 3500K, 80 CRI
- 4" Xicato Adjustable, 21°, 3000K
- 4" Xicato Adjustable, 43°, 3000K
- 4" Xicato Adjustable, 60°, 2700K
- 4" Xicato Adjustable, 60°, 3000K
- 4" Xicato Adjustable, 60°, 3500K
- 4" Xicato Artist, Adjustable, 43°, 3000K
- 4" Xicato Artist, Adjustable, 60°, 3000K
- 4” High-Output Adjustable 40°, Tunable White 5000K-2700K, 90CRI
- 4” Square Citizen High Output, 60° Beam 3000K, 80CRI, 0° Tilt, Low Position
Dimmer Compatibility
lumenetix commissioning tool
"Why ELEMENT" Downlight Brochure
Building Awareness & Education
Product Information
4" LED FIXED DOWNLIGHT
The ELEMENT 4” Next Generation fixed recessed downlight features a patented high/low lamp positioning which allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Options include premium warm dimming options, Xicato and Xicato Artist Series LED options, flanged or flangeless trim options including a flangeless wood ceiling option.
Housing size reduced 54% Patented High/Low Lamp Positioning 1-step static white, 2-step warm dim and tunable white Standard Triac/ELV dimming to less than 1% Trim Reflector Options Solite™ Soft Focus Lens Option
![LED / 5-Year Warranty](/Content/Images/Products/led-5-year.png)
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=112703694)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=112703694)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=112703694)
![White White](/Content/Images/Products/Finishes/white.jpg?r=112703694)
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

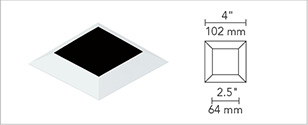

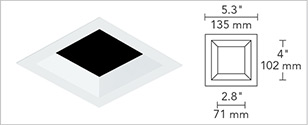

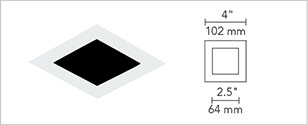

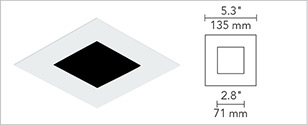

SQUARE TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |

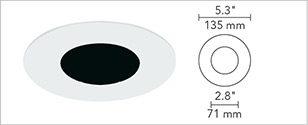

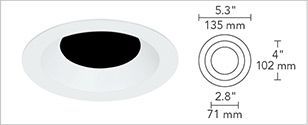

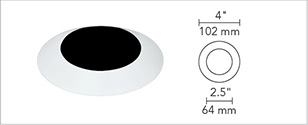

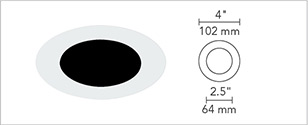

ROUND TRIMS![]() FLANGELESS BEVEL ![]() FLANGELESS FLAT ![]() FLANGED BEVEL ![]() FLANGED FLAT |
AVAILABLE FINISHES
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=112703694)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=112703694)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=112703694)
![White White](/Content/Images/Products/Finishes/white.jpg?r=112703694)
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Trim-Mounted Reflectors
ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance.
Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look.
These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
- Can be easily installed or removed
- Mounts to existing trim
- Compatible with Fixed and Adjustable Housings
- Finish Options: Anodized Gold (G) or Anodized Black (B)
![](/i/ELEMENT/products/reflectors/4in_reflectors_chart.jpg)
![](/i/ELEMENT/products/reflectors/reflectors_blackgold.jpg)
shown in Black
(below ceiling view)
![](/i/ELEMENT/products/reflectors/reflectors_whitegold.jpg)
shown in Black
(below ceiling view)
![](/i/ELEMENT/products/reflectors/reflectors_black.jpg)
black reflector insert
![](/i/ELEMENT/products/reflectors/reflectors_gold.jpg)
shown in Black
(trim mounted)
Click here to download the Reflectors specification sheet.
Housings
![]() IC AIRTIGHT
|
![]() NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.![](/i/ELEMENT/web/Installation_Guides/4_6_step1.jpg)
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
![](/i/ELEMENT/web/Installation_Guides/4_6_step2.jpg)
Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.
![](/i/ELEMENT/web/Installation_Guides/4_6_step3.jpg)
Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.
![](/i/ELEMENT/web/Installation_Guides/4_6_step4.jpg)
Sand and paint ceiling and insert trim.
