4" LED PRO SERIES ADJUSTABLE
The Element 4" Pro Series Adjustable downlight features full adjustability with lockable, tool-free hot aiming, including patented high/low lamp positioning. Engineered with a precision diffuser
and Solite soft focus lens that eliminates hot spots, direct visibility into the housing, and delivers a clean aperture and ceiling aesthetic. Complementing the Element 4" Pro Series Fixed downlight, the Adjustable is offered in a variety of options, including output, beam spreads and the choice of
Static White, Warm Dim or Tunable White to complete any commercial installation.
2-Step Standard
Solite Soft Focus Lens plus Diffuser Standard
Tool-Free Aiming/Locking: 0-40° Tilt, 361° Rotation
Patented High/Low Lamp Positioning
Standard Triac/ELV Dimming Down to 1%
Lutron/eldoLED options

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

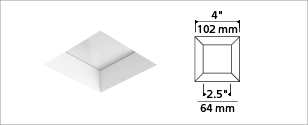

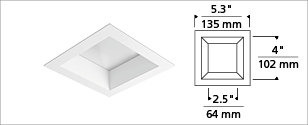

SQUARE TRIMS![]() FLANGELESS REGRESSED ![]() FLANGED REGRESSED |

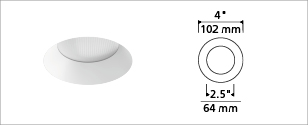

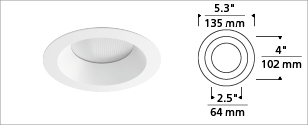

ROUND TRIMS![]() FLANGELESS REGRESSED ![]() FLANGED REGRESSED |
No Flange | White Flange | Black Flange | Haze Silver Flange |
---|---|---|---|
![]() Haze Silver Bevel |
![]() White Flange, Haze Silver Bevel |
![]() Black Flange, Haze Silver Bevel |
![]() Haze Silver Flange, Haze Silver Bevel |
![]() Black Bevel |
![]() White Flange, Black Bevel |
![]() Black Flange, Black Bevel |
|
![]() White Bevel |
![]() White Flange, White Bevel |
![]() Black Flange, White Bevel |
Housings

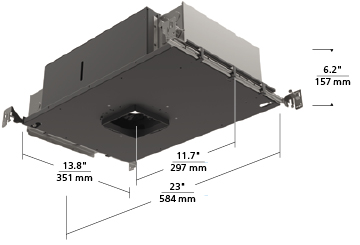

![]() E4NGEMH
EMERGENCY BATTERY NON-IC AIRTIGHT |

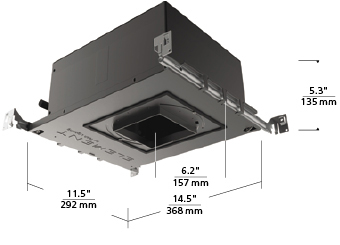

![]() E4NGH
IC AIRTIGHT / NON-IC / CHICAGO PLENUM |
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).

Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.

Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.

Sand and paint ceiling and insert trim.
