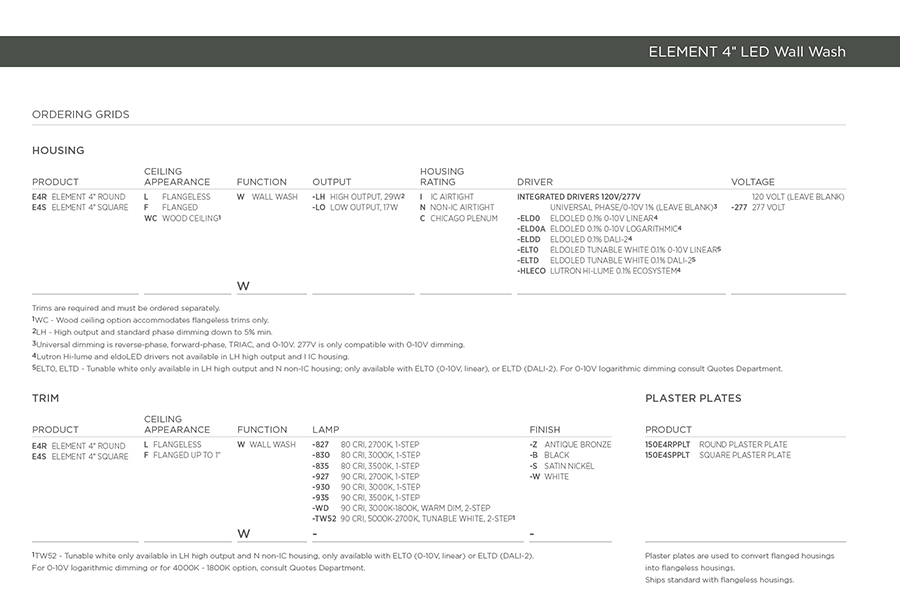

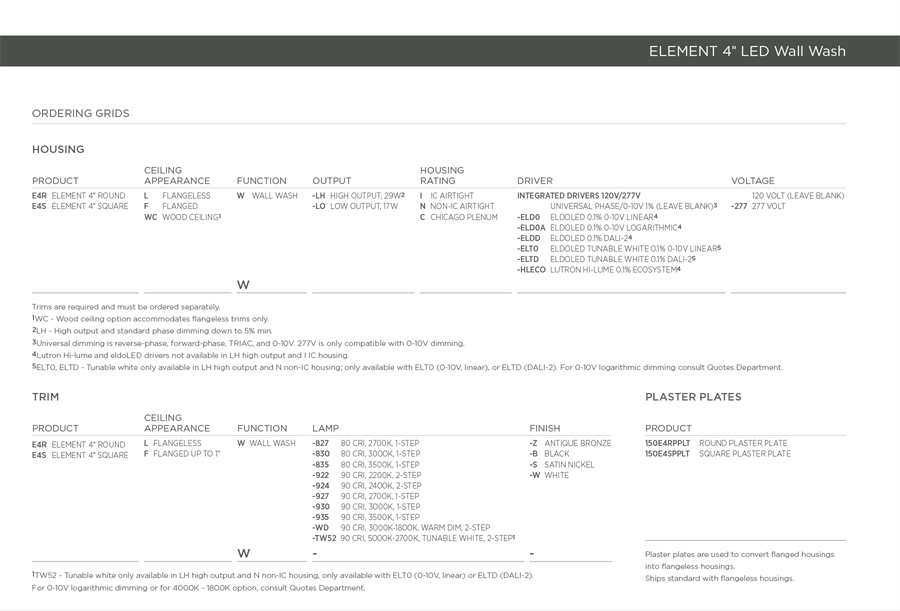

full ordering grid
installation
applications gallery
how to buy
![](/i//ELEMENT/products/large/4_led_wall_wash.jpg)

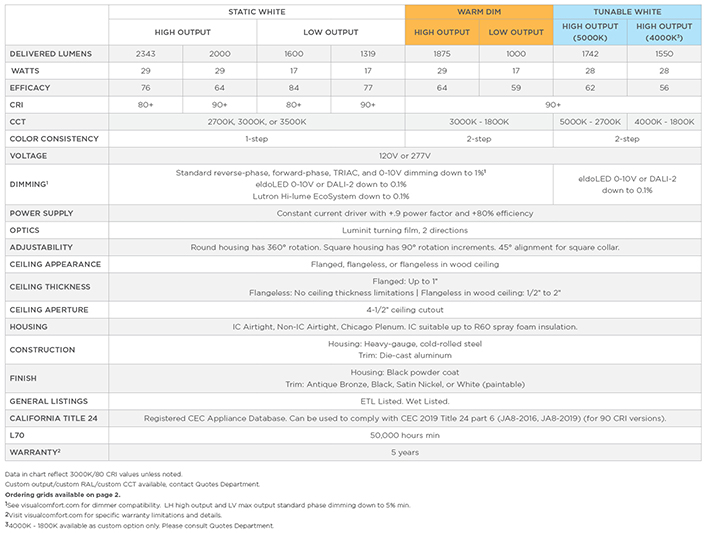

Product Information
4" LED WALL WASH
The ELEMENT 4” Next Generation Wall Wash solution sets a new best-in-class performance benchmark for recessed downlights. These ELEMENT Wall Wash solutions create a beautifully uniform high output flood of LED light without scalloping or hot spots, eliminating shadows and emphasizing the smoothness of a wall from top to bottom.
Housing reduced by 54%
Luminit turning film, two directions
Even vertical and horizontal illumination of walls
High Efficacy: 76 lumens/watt
Standard Triac/ELV dimming to less than 1%
![LED / 5-Year Warranty](/Content/Images/Products/led-5-year.png)
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=613361410)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=613361410)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=613361410)
![White White](/Content/Images/Products/Finishes/white.jpg?r=613361410)
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

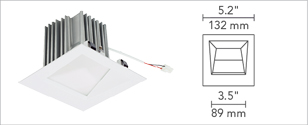

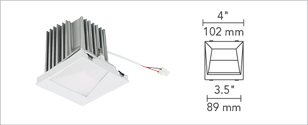

SQUARE TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |

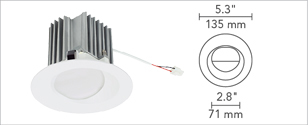

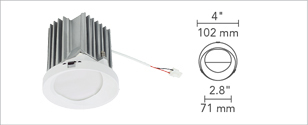

ROUND TRIMS![]() FLANGELESS WALL WASH ![]() FLANGED WALL WASH |
AVAILABLE FINISHES
![Antique Bronze Antique Bronze](/Content/Images/Products/Finishes/antique_bronze.jpg?r=613361410)
![Black Black](/Content/Images/Products/Finishes/black.jpg?r=613361410)
![Satin Nickel Satin Nickel](/Content/Images/Products/Finishes/satin_nickel.jpg?r=613361410)
![White White](/Content/Images/Products/Finishes/white.jpg?r=613361410)
Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
Housings
![]() CHICAGO PLENUM
|
![]() IC AIRTIGHT
|
![]() NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.![](/i/ELEMENT/web/Installation_Guides/4_6_step1.jpg)
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
![](/i/ELEMENT/web/Installation_Guides/4_6_step2.jpg)
Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.
![](/i/ELEMENT/web/Installation_Guides/4_6_step3.jpg)
Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.
![](/i/ELEMENT/web/Installation_Guides/4_6_step4.jpg)
Sand and paint ceiling and insert trim.
