Product Information
ENTRA CL 3" LED DOWNLIGHT

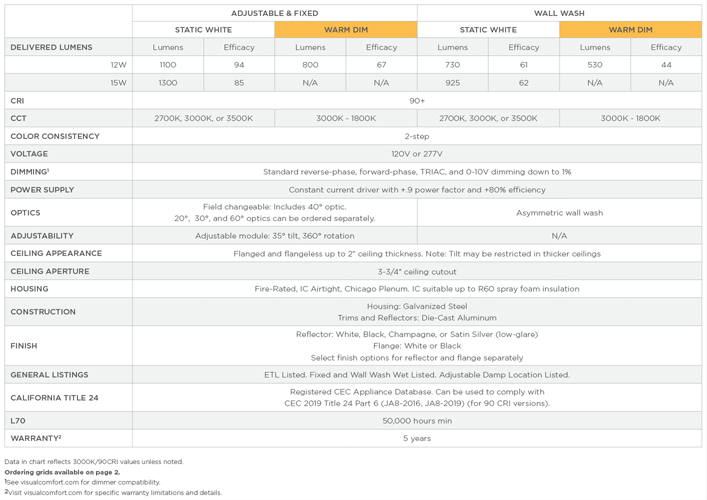

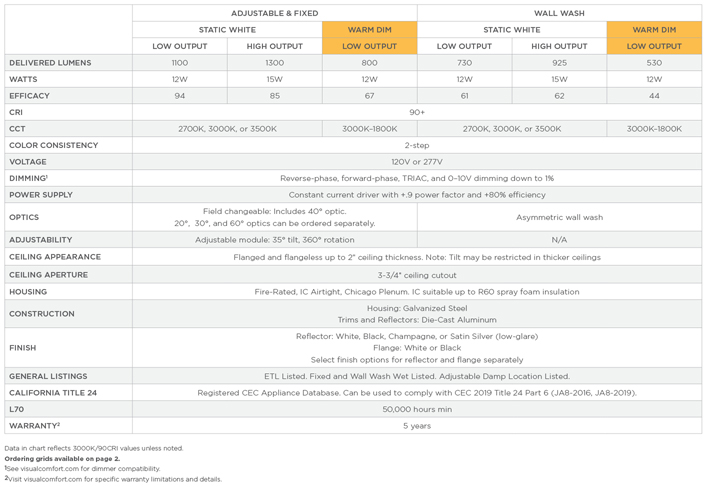

The ENTRA CL3 LED Adjustable, Fixed and Wall Wash 3” downlights offer a cost-effective alternative for residential, multi-family, hospitality and tenant improvement applications without sacrificing architectural grade aesthetic or quality. Custom engineered for high performance and reliability, ENTRA CL3 is easy to configure with a complete feature set that offers flexibility without an overwhelming list of options. Modules are available with three Static White CCT options, 3000K-1800K warm color dimming, and four interchangeable optics (20°, 30°, 40° and 60°). Trim options include Flanged or Flangeless (includes mud plate) and Round or Square in Satin Silver, Champagne, Black and White finish (White finish is field-paintable).
2700K, 3000K, 3500K, Warm Dim 3000K-1800K
Multiple Output Options
20°, 30°, 40° (included) and 60° interchangeable optics
Flanged or Flangeless Ceiling Appearance
35° Tilt, 360° Rotation Adjustability on Adjustable model

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

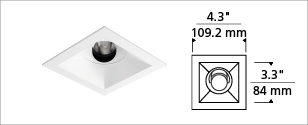

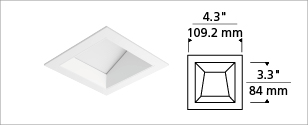

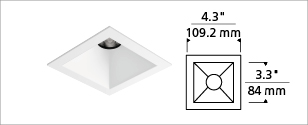

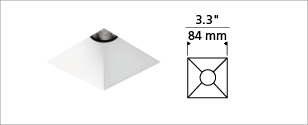

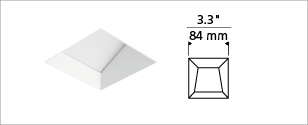

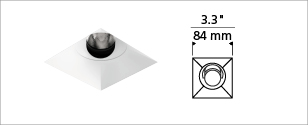

SQUARE TRIMS![]() FLANGELESS ADJUSTABLE ![]() FLANGELESS DOWNLIGHT ![]() FLANGELESS WALL WASH ![]() FLANGED ADJUSTABLE ![]() FLANGED DOWNLIGHT ![]() FLANGED WALL WASH |

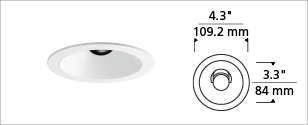

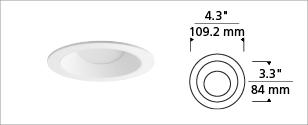

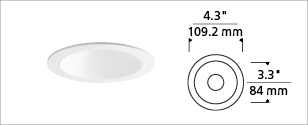

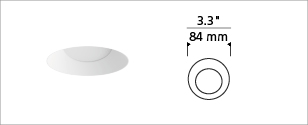

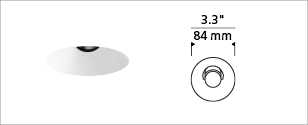

ROUND TRIMS![]() FLANGELESS ADJUSTABLE ![]() FLANGELESS DOWNLIGHT ![]() FLANGELESS WALL WASH ![]() FLANGED ADJUSTABLE ![]() FLANGED DOWNLIGHT ![]() FLANGED WALL WASH |
White Trim | Black Trim |
---|---|
![]() White Trim, Black Reflector |
![]() Black Trim, Black Reflector |
![]() White Trim, White Reflector |
![]() Black Trim, White Reflector |
![]() White Trim, Champagne Reflector |
![]() Black Trim, Champagne Reflector |
![]() White Trim, Silver Reflector |
![]() Black Trim, Silver Reflector |

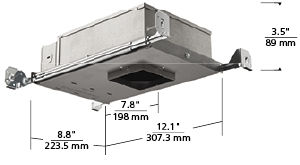

Housings
![]() IC AIRTIGHT/FIRE-RATED/
CHICAGO PLENUM |

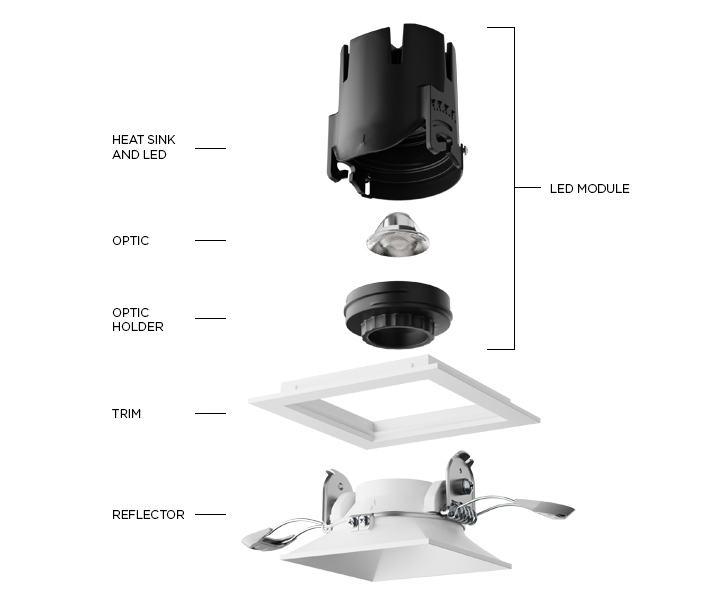

Mechanism
![]() |
Applications
